Description

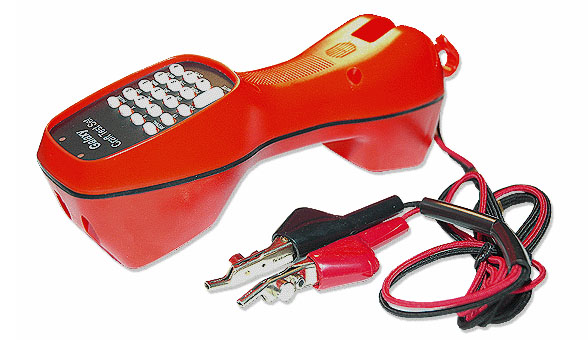

A low cost, high quality test set. Galaxy is made of industrial grade plastic. It is designed for rugged use and can withstand rough handling and shocks in field use. The dumbbell shape is slung on the shoulder to keep the hands free, It has an extra large belt hook equipped with a spring-loaded clip for secure holding to belt loops. The line cord is braided in superior yarn with angled bed of nails and piercing pin.

Features

Specifications

Electrical: Current <90ma | Off-hook DC resistance150 ohms | Off-hook AC resistance600 ohms

Dialing: Pulse Rate 10PPS + 1PPS | Break/Make Ratio 60/40 | Inter digit pause 720-880 ms

DTMF output: High Level -8 + 2 dB | Low Level -6 + 2 dB | Twist 2 + 1 dB

Physical: Dimension 9.1 x 2.9 x 3.7 inches | Weight 1.1 lbs | Water Proof | Meets IP 41

Operation environment: Environment temperature -10 degress Celsius ~ 55 degress Celsius | Relative humidity 10% ~ 95% | Environment noise < 60dB
